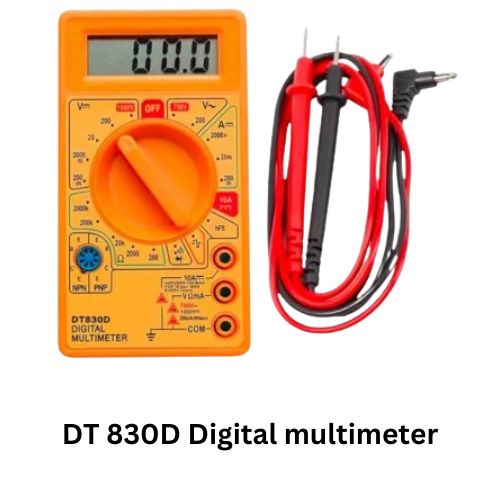

DT 830D Digital multimeter

The DT 830D Digital Multimeter is a compact, low-cost, and widely used handheld device designed for measuring various electrical quantities. It’s popular among electronics hobbyists, students, and technicians due to its affordability and ease of use.

🔧 Key Features of DT 830D:

1. Measurement Functions:

   • DC Voltage (V): Ranges from 200mV to 1000V.

   • AC Voltage (V): Usually up to 750V.

   • DC Current (A): Typically up to 10A.

   • Resistance (Ω): Ranges from 200Ω to 20MΩ.

   • Transistor Testing: Includes an hFE socket for testing NPN and PNP transistors.

   • Diode Testing: Can check the forward voltage of diodes.

   • Continuity Check: With buzzer (if equipped), to check wire or circuit continuity.

2. Display:

   • 3½ digit LCD display (max reading 1999).

   • Some models have a backlight for better visibility.

3. Other Features:

   • Manual range selection via rotary switch.

   • Fuse protection for current measurement.

   • Battery-powered (typically a 9V battery).

   • Probes included for test leads.

4. Build & Design:

   • Lightweight plastic casing.

   • Flip-out stand on the back for desktop use.

   • Usually includes protective rubber casing in some versions.

🔌 Typical Applications:

• Measuring battery voltage.

• Checking power supply outputs.

• Diagnosing electrical circuits.

• Testing resistors, diodes, and transistors.

• Learning tool in electronics education.

⚠️ Precautions:

• Always start with the highest range to prevent damage.

• Never measure voltage in the current (A) mode.

• Replace the fuse if current measurement stops working.

• Use proper probe ports (COM and VΩmA or 10A) for each function.
